Effective February 2019 – The Workplace Heath Expert Committee has endorsed the reclassification of mild steel welding fumes as a human carcinogen. Consequently, the HSE has strengthened its enforcement expectation for all welding fume, including mild steel welding and welding outdoors.
What does this mean for businesses?
General ventilation is no longer sufficient and changes are required with immediate effect. Previously welding fume extraction was not needed for outdoor welding or for short tasks such as tacking or minor repairs, however this is now no longer the case. All businesses should ensure effective engineering controls are provided and correctly used to control fume arising from welding activities of any duration, including mild steel welding. All exposure to any welding fume must be adequately controlled. Risk assessments should reflect the change to the expected control measures, and welders need to be suitably instructed and trained in the use of the controls. Where engineering control alone cannot control exposure, respiratory protection must be provided, for example in the form of a powered air respiratory system or a mask.

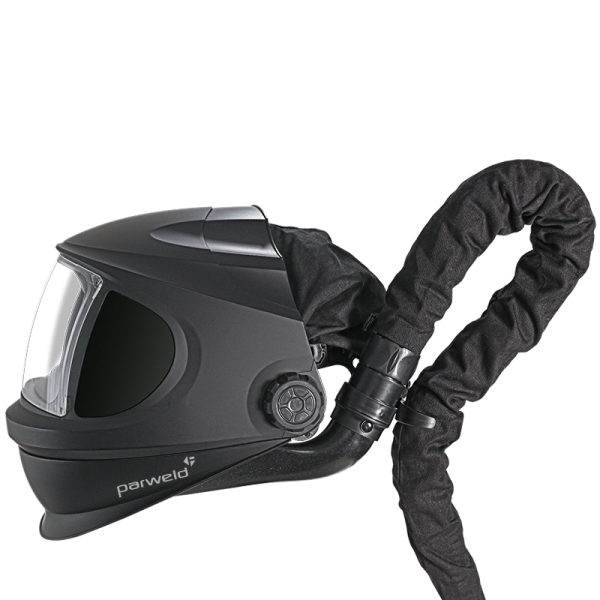

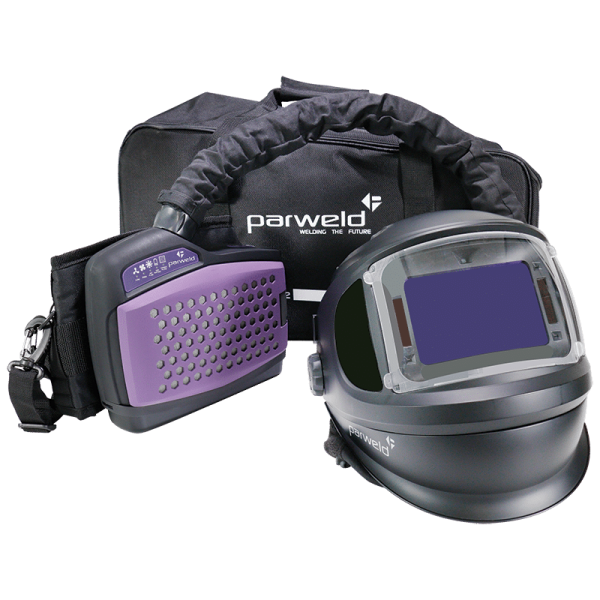

The Parweld Powered Air Purifying Respiratory (PAPR) System is an easy-to-use, versatile respirator for particulate environments. With a compact and slim design, the powered air respirator is the answer to your respiratory protection needs. This system is TH3P certified in accordance with European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.
Blower Unit Features
Portable & lightweight.
Protects against dust particles, solid & liquid aerosols & smoke.
Constant filtered air flow.
Lightweight Li-ion removable battery.
Audible, visible & vibration warning alarms for low power, low air-flow & blocked filter.

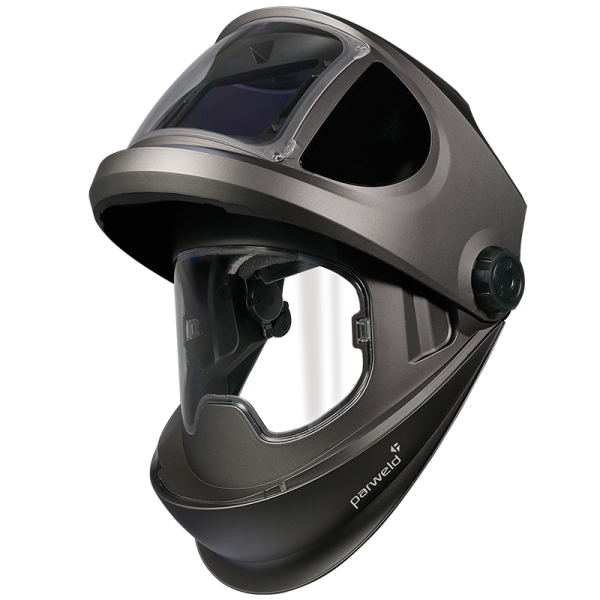

XR937H Helmet Features
Extra large viewing area.
True colour lens.
4 arc sensors.
All external controls.
Variable shade control DIN 5-9/9-13.
Dual solar cells.
Conforms to EN379, EN175, EN166, ANSI Z87.1.
Li-ion battery lifetime: >350 hours.
UV/IR protection: Permanent shade DIN16.
Light state: DIN shade 4.
Dark state: Shade DIN 5-9 to DIN 9-13 variable.
Dark to light: 0.1-1.0 seconds variable.
Helmet material: High impact polyamide nylon.
Minimum flow: 170 or 220nl/min.
One charging cycle: Approx 2.5 hours.
Operating temperature: -10°C to +60°C (23°F to 131°F).
Operating time of battery after fully charged: Low setting 11* hours, high setting 9* hours (*min with a fully charged new battery & filter room temp).
Power on/off: Fully automatic.
Power supply: Solar cells & lithium batteries.
Protection and noise level: TH3 P R SL, max. 60dB(A).
Standard: European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.
Storage temperature: -20°C to +70°C (-4°F to -158°F).
Viewing area: 101mm x 94mm/3.98” x 3.7”.
Helmet: 2 years.
Blower unit: 1 year.
