Price range: £79.95 through £99.00 exc. Vat

A robust circular saw for power, precision and reliability at an affordable price. It uses one multi-material blade to cut a wide range of materials and includes a 1020mm track. Available in 110V or 230V, this saw features an impressive 1,600-watt high torque motor and is ideal for both workshop and worksite use.

SKU: N/A Category:
Evolution R185CCSX 185mm Circular Saw With 1020mm Track

Description

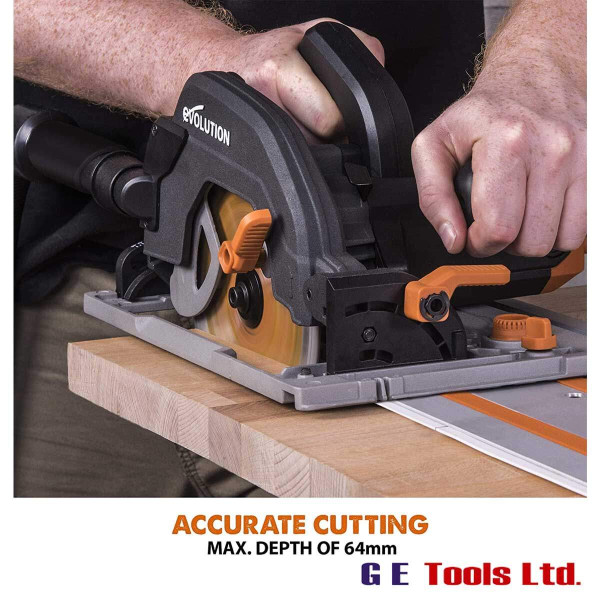

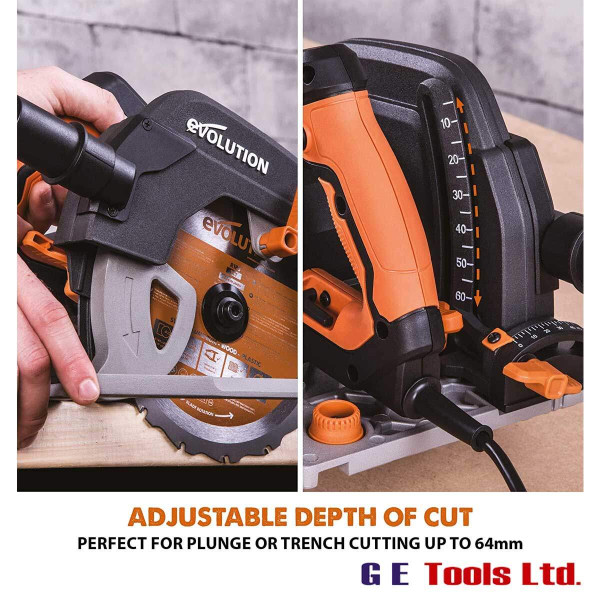

Get power and precision at an affordable price. The R185CCSX from Evolution Power Tools ensures upmost accuracy and relatability so you can get the job done faster and smoother than before. Featuring Evolution’s multi-material cutting technology, it uses one blade to cut everything while providing an accurate cut with an adjustable 64mm cut depth capability, including trench cutting.

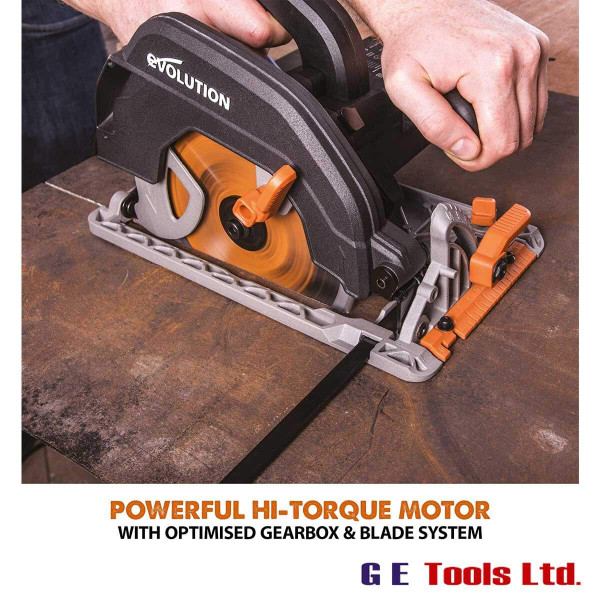

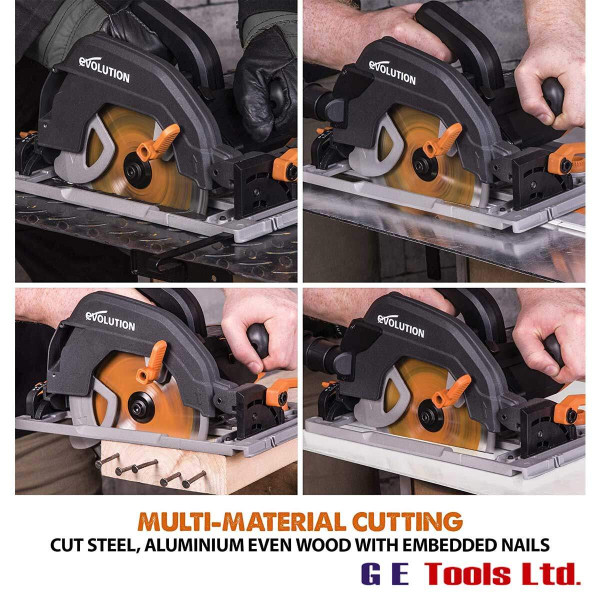

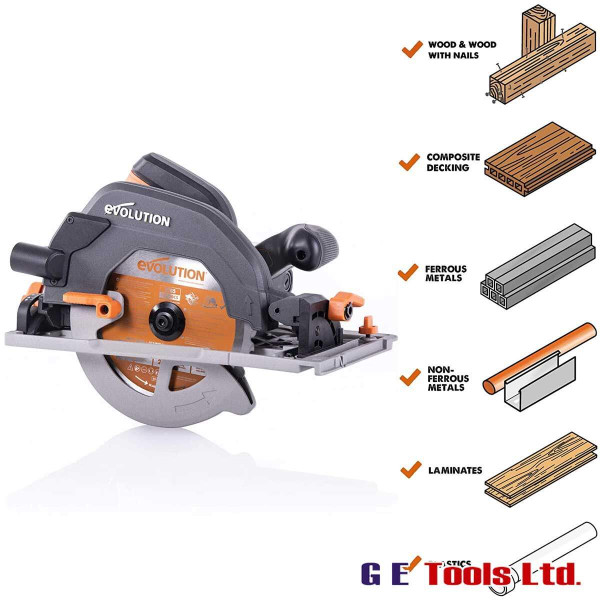

Get a reliable smooth square cut every time in a wide range of materials such as wood, composite decking, ferrous metals, non-ferrous metals, laminates and plastics using its impressive 1,600-watt high torque motor, complete with optimised gearbox and blade system.

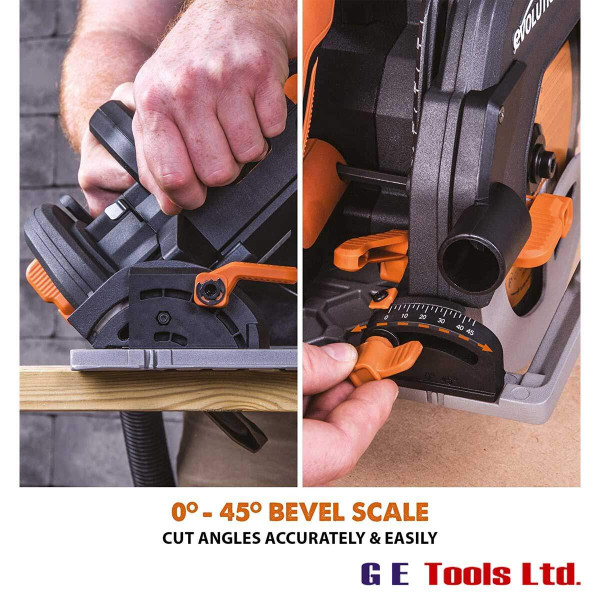

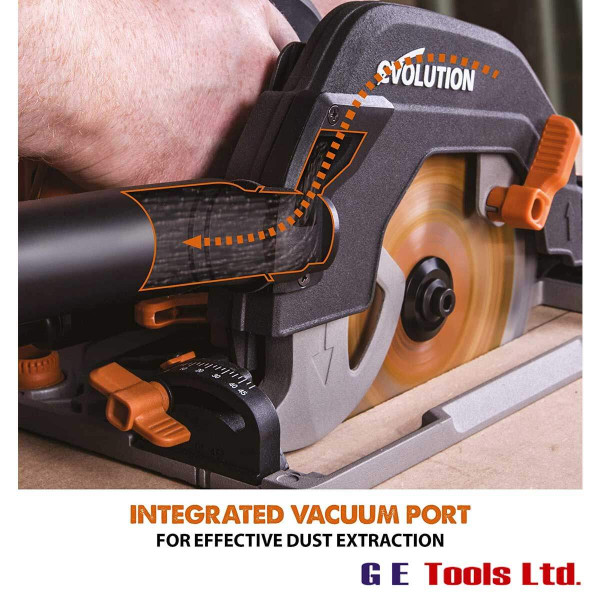

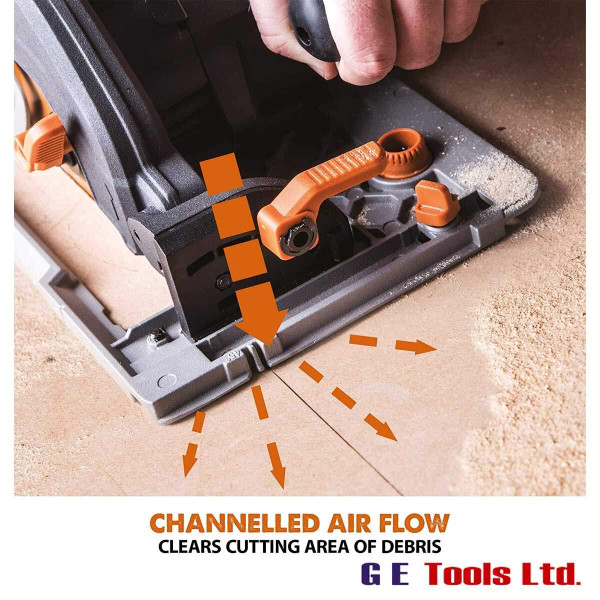

It has a 0-45° bevel tilt with a virtual pivot, so you can always get the same cutting line when fixed to the track. With compatible vacuums, use the dust extraction port and adapter that is included in the box for a cleaner workspace. The channelled airflow and base ensure you’ll have an optimum viewing of any cutting line.

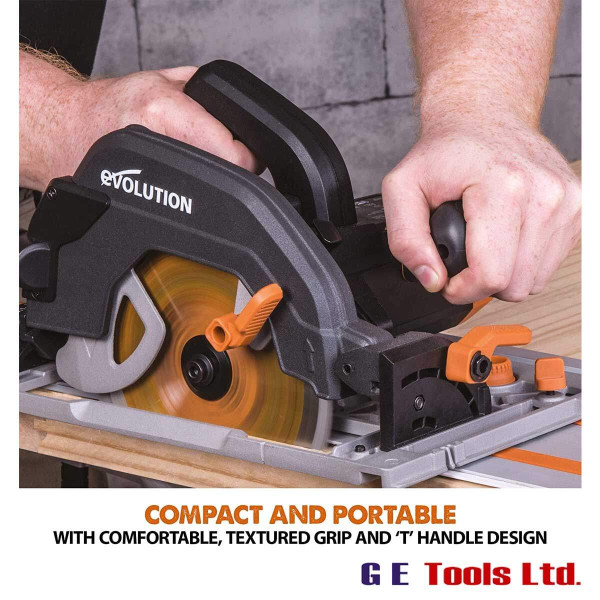

Despite its robust design, this circular saw weights just 4.8kg, making it ideal to transport from site-to-site as well as featuring in your workshop.

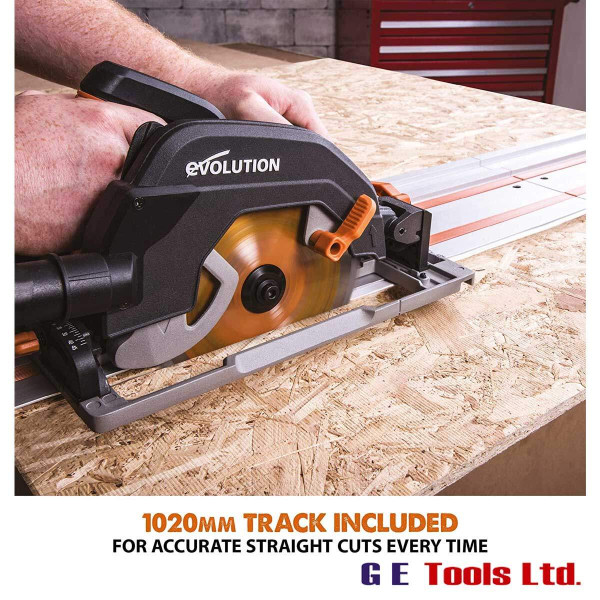

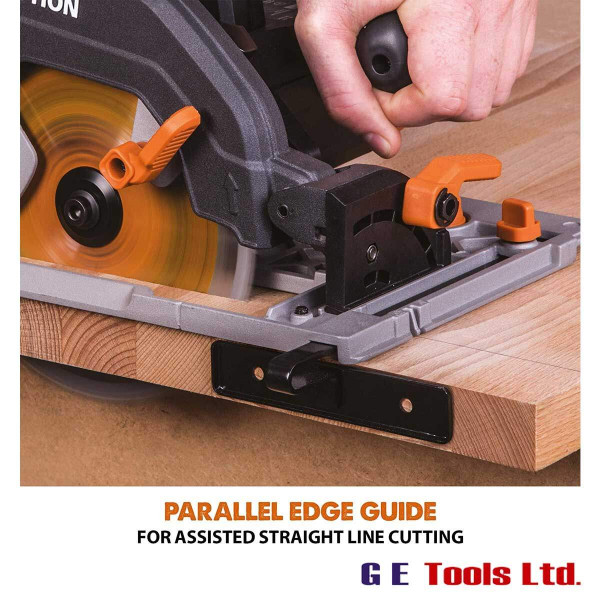

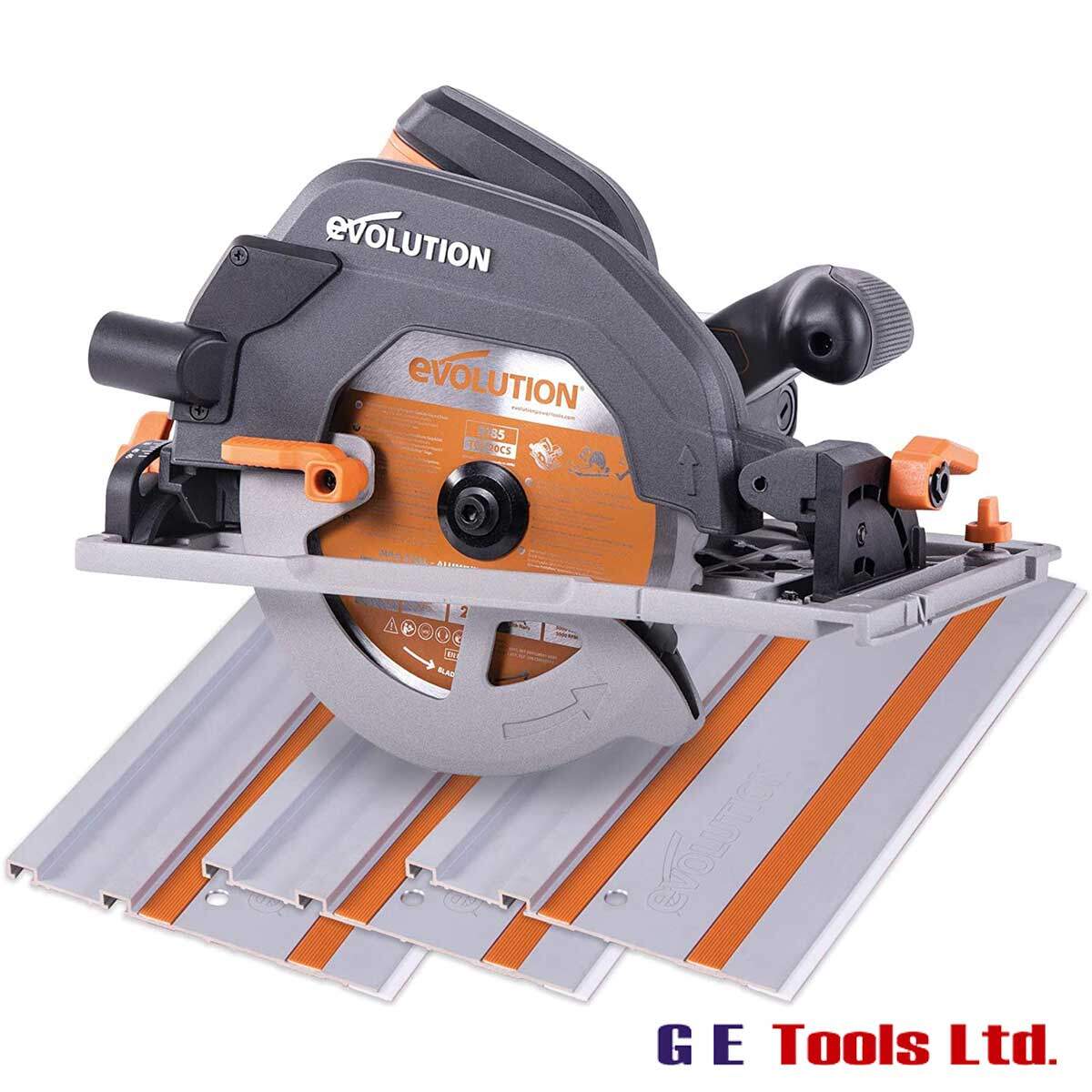

Inside the box is the R185CCSX circular saw, 16T multi-material TCT blade, a hex key for blade changes, another hex key for connecting the track, a parallel edge guide, a dust hose connector, a 1020mm track (in three 340mm sections), four connector bases and 16 screws.

This circular saw comes with three years limited warranty when registered with Evolution Power Tools. Available in 110V and 230V.

Specification

Motor (110V 50Hz): 1600W
Motor (240V 50Hz): 1600W
Speed No Load (110V): 3700 rpm
Speed No Load (240V): 3900 rpm
Max. Bevel (Left): 45°
Circular Saw Base: Cast Aluminium
Cable Length: 3m
Blade Dia.: 185mm
No. of Teeth: 16
Bore: 20mm
Kerf: 1.7mm
Max. Depth of Cut (0°): 64mm (59mm w/Track)
Max. Depth of Cut (45°): 47mm (42mm w/Track)

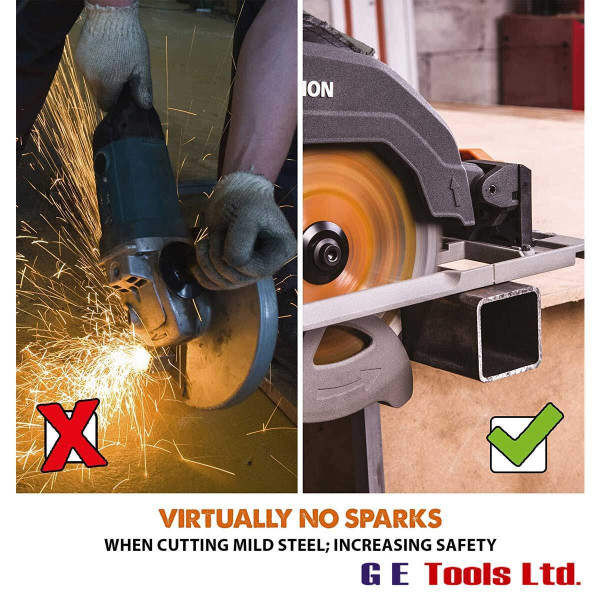

Mild Steel Plate
(Max. Thickness):
3mm
Mild Steel Box Section
(Max. Wall Thickness):
3mm
Product Dimensions: 255mm x 375mm x 265mm
Packaging Dimensions: 380mm x 300mm x 250mm
Product Weight: 5.1kg
Packaged Weight: 8.3kg
Sound Pressure Level LPA: 94,3dB(A)
K=3 dB(A)
Sound Power Level LWA: 105,3dB(A)
K=3 dB(A)
Vibration – Main Handle (Sawing Wood): Ah,w= 3,347m/s2
Vibration – Auxiliary Handle (Sawing Wood): Ah,w= 3,119m/s2
Vibration – Main Handle (Sawing Metal): Ah,M= 3,572m/s2
Vibration – Auxiliary Handle (Sawing Metal): Ah,M= 3,241m/s2
Uncertainty K: 1,5m/s2
